Syncron + Dyneon = Symbion Series - Guarantee of unlimited sound quality
To create a flawless connection between speakers, signal, and space, we made no compromises. Based on the acoustic and electrical properties of the Hyperion Series, we developed the active crossover preamplifier Syncron and the amplifier Dyneon – a solution that guarantees precision at the highest level.
Why an active crossover?
With our active crossover, available in either analog or digital, we can fine-tune the characteristics of each component with much greater precision. This also allows us to significantly reduce room acoustic challenges such as disruptive room modes. This technology opens up a range of possibilities to precisely adapt the sound quality to the conditions of your listening space and create an optimal listening experience.
To maintain consistency, we developed the Dyneon amplifiers as the ideal link between the Syncron crossover preamplifier and the speakers. Ample power reserves for bass thanks to Class A/B circuitry and the ability to remain in Class A operation up to 5 watts allow for tailored amplification for every nuance in the midrange and high frequencies.
Electroacoustic Symbiosis.
The Symbion Series offers a variety of features and equipment that are rarely found in this combination. However, this brochure is far from enough to fully highlight all the features of this series. We invite you to download the upcoming Symbion brochure, where we will present each detail in-depth.
Symbion Series - Specifications, basic Data and Informations

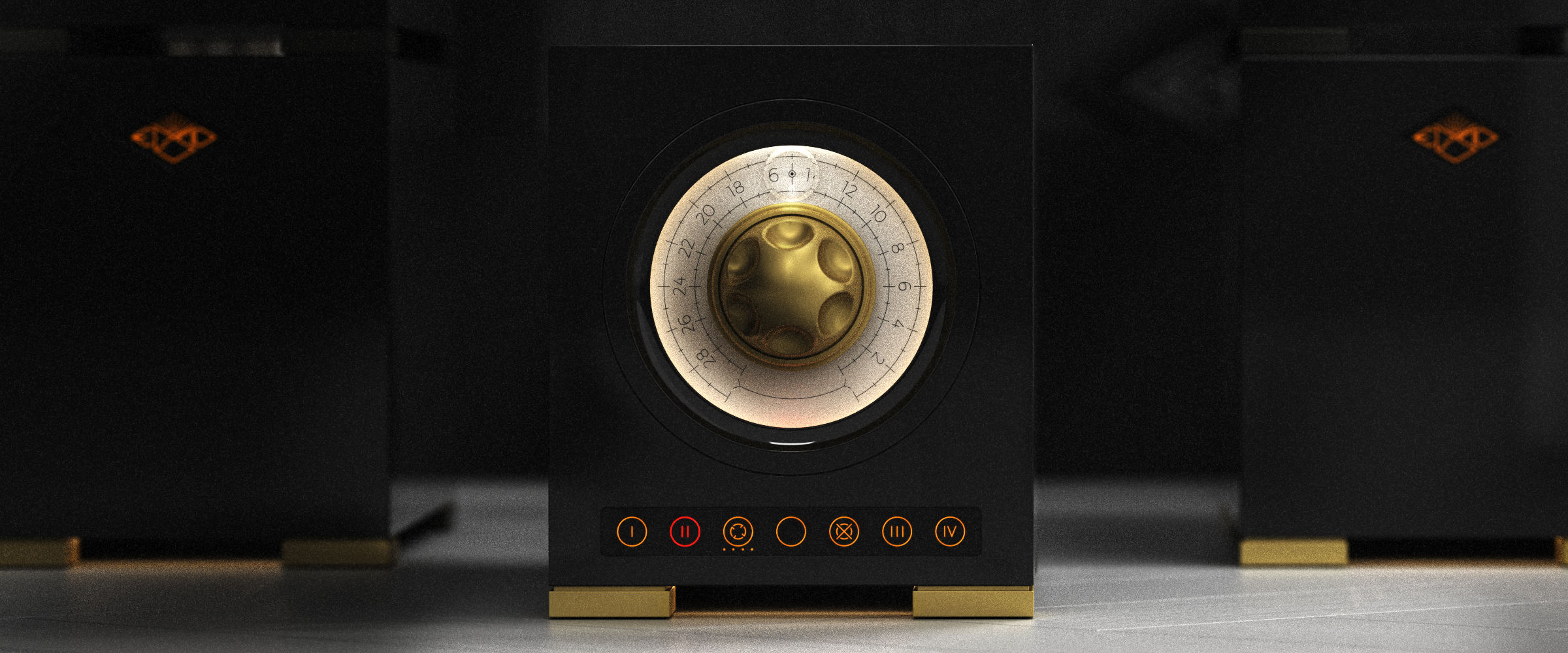

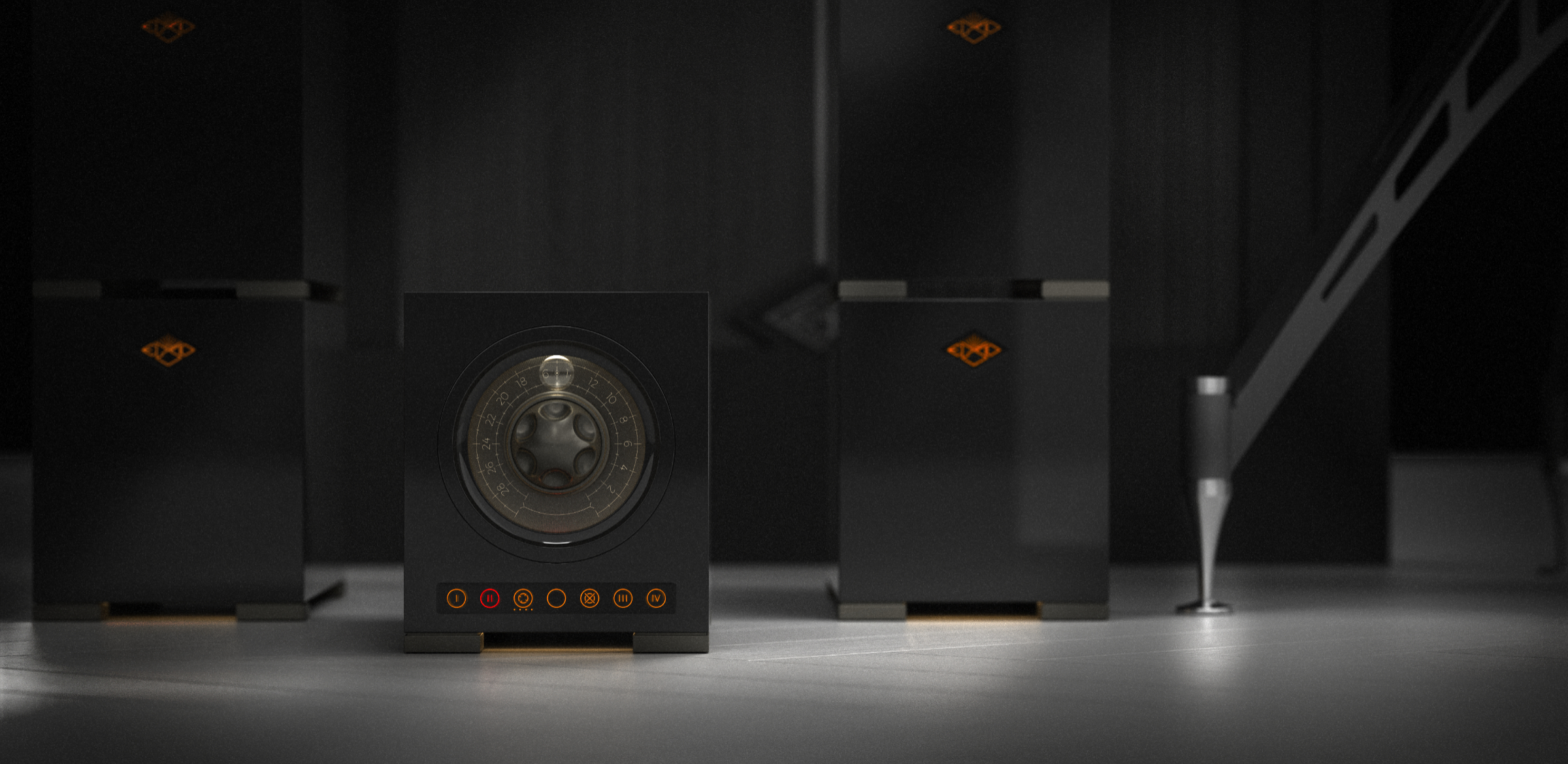

Syncron
| Operating Principle : | 8-channel preamplifier |
| – | |
| Crossover Principle : | DSP or active analog |
| Volume Control : | 8-channel analog, synchronized |
| – | |
| Inputs : | 4x XLR bal. / 4x RCA unbal. |
| – | a/o 2x optical Toslink digital |
| Outputs : | 8-channel XLR balanced, buffered |
| – | 2x 12V Trigger |
| Max Output Signal : | 8Vrms |
| – | |
| Digital | |
| DSP Functions : 24bit / 192khz (internally 32bit) | 24bit / 192khz (internally 32bit) |
| Slope: | 6 – 120db/oct |
| – | Bessel, LR, Butt., Tsheb. |
| – | Allpass, EQ, H/L Shelf, H/L Pass |
| – | Notch/PEQ, Time delay, Phase |
| Calibration System: | Stereo calibration / Dual mic |
| – | USB-C input – Control |
| Analog | |
| Active crossover functions : | Bessel |
| Slope | 6 – 24db/oct |
| Filter Type : | LP / HP, Subsonic cutoff |
| – | LS / HS Filter, Notch filter |
| – | Phase correction Allpass 0-180° |
| – | |
| Remote Control : App and/or remote control | App and/or remote control |
| Note :** | Analog crossover , no time |
| – | alignment for the tweeter horn |
| Operating Voltage : | 110 / 240 V |
| Dimensions : B/H/T cm | 47/24/min.30 |
| Weight : kg | N.A. |
Dyneon 2|4
| Operating Principle : | Class A/B amplifiers |
| Class A up to 5 watts | |
| Channels : | 4 channel | 2 channel |
| Dyneon 4 | 2 | Dyneon 4 |
| Power : | 2 x 200W / 8Ohm |
| 2 x 50W / 8Ohm | |
| Power Supply Capacity : | 60.000µF + 40.000µF |
| Dyneon 2 | |
| 2 x 300W / 8Ohm | |
| Power Supply Capacity : | 60.000µF |
| Signal-to-Noise Ratio : | Ref. 1khz, 10W / 4 Ohm |
| unweighted | -94dBr |
| THD + N, 1khz, 10W/4Ohm | <0.01% |
| – | |
| Dyneon 4 | 2 | Dyneon 4 |
| Inputs : | 2x 2ch. XLR Neutrik |
| Outputs : 2x 2ch. Speakon Neutrik | 2x 2ch. Speakon Neutrik |
| Dyneon 2 | |
| Inputs : | 1x XLR Neutrik |
| Outputs : | 1x XLR Neutrik |
| 2ch. Speakon Neutrik | |
| Scope of Delivery: | Includes 2 amplifiers |
| Operating Voltage : | 110 / 240 V |
| Dimensions : W/H/D cm | 34/54/29 |
| Weight : kg | N.A. |
| Special Features : | Dyneon 2 |
| 2 bass amplifiers with | |
| with integr. active crossover module | |
| For bass and midrange | |
| Dyneon 4 | |
| 2 bass amplifiers | |
| 2 amplifiers for mid./high freque. |
